Supply Longer Life Medical Devices
4 Years
| Ask Lasest Price | |
| Brand Name : | Longermay |
| Model Number : | LGM-820 |
| Supply Ability : | 1000 Set/Sets per Month |
| Price : | $100.00 - $250.00/Sets |
Model | BYS-820& BYS-820D |
Infusion Rate | ml/h mode:1~1200ml/h(1ml/h step) drop/min mode:1~266drop/min(1drop/min step) |
Purge Rate | 100mh/h---1200ml/h(can be calibrated) |
Flow Rate Accuracy | ml/h mode:Within±5%(after correct calibration) drop/min mode:Within±3%(after correct calibration) |
Mechanical Precision | Within±2% |
Maximum infusion pressure | 150kPa |
Alarm Pressure | High 800mmHg±200mmHg(106.7kPa±26.7kPa) Medium 500mmHg±100mmHg(66.7kPa±13.3kPa) Low 300mmHg±100mmHg(40.7kPa±13.3kPa) |

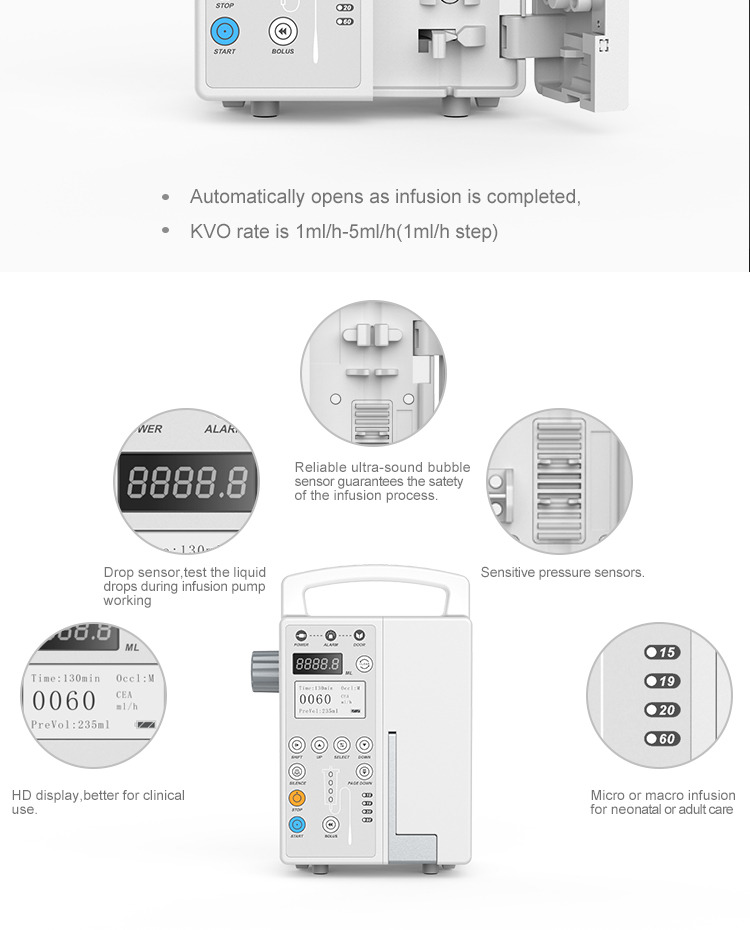

Audible and Visible Alarms | There are bubbles、Tube is blocked、Close the door、IV set
Mismatched、Battery running out、Infusion finish、Equipment failure、Abnormally Operation、Software Exception、Low battery、 forget the operations etc |
Transport&Storage Condition | Temperature -20℃~+55℃ Relative Humidity ≤95% Atmospheric Pressure 50.10KPa---106.0KPa |
Infusion Set | Compatible with any brand of infusiong sets ater correct
calibration The following brands of infusiong sets are recommended:GEA、Onemed、SHINVA |
Infusion maximum value (under single fault condition) | 1ml |
Forbidden | Not support blood Infusion |
Dimension | 140mm(L)×157mm(W)×220mm(H) |
Net Weight | 1.8kg |
Package Reference | 1pcs Carton:2.8KG,33cm(L)×28cm(W)×26cm(H) 2pcs Carton:6.5KG,52cm(L)×30cm(W)×36cm(H) 3pcs Carton:9.6KG,76cm(L)×30cm(W)×36cm(H) |
|
