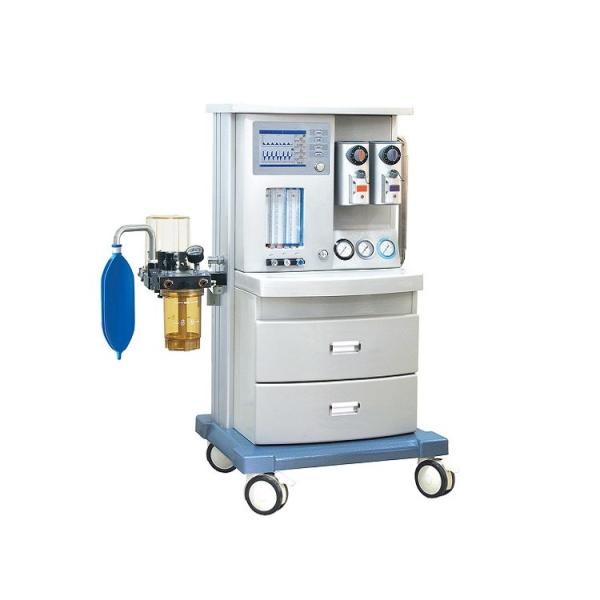

High Quality Hospital Medical Equipment Anesthesia / Anasthesia / Anestesia Machine

Product Description

Hospital Medical equipment Anesthesia / anasthesia / Anestesia machine

Characteristics:
1. ICU quality ventilation:
adapts Healicom Medical's patented ventilator technology to deliver versatile proven high quality ventilation performance.
Available ventilation modes include .Intermittent Positive Pressure Ventilation (IPPV/SIPPV),Volume Controlled Ventilation(VCV),
Intermittent Mandatory Ventilation (IMV/SIMV) & more.
2. Real time ststus indication:
In the medicaI environment, its often critical to stay abreast of changes and developments ininformation. This is why we created a display system for . HA-3800A, that succinctly and clearly provides real time notifications on the status of the patient, the alarms, the ventilation process and the anesthesia machine itself.

3. Intuitive UI display:
The trimmed down intuitiveuser interface of the Ha-3800A designed with accessibility and convenience in mind,allows users to effortlessly toggle between patient parameters, system settings,Pressure-Time, Flow-Time,Pressure-Volume and Flow-Volume waveforms at the touch of a button.

4. Breathing made simple:
1. PA series Vaporizes
Available in enflurance:isoflurance,sevoflurance&halothane.
2. Electric Flow Sensor
Promotes more reliable, stable and rapid gas flow response times.
3. PDJ Series Patient Monitor
Mounted adjustable multi-parameter patient monitor (optional, HA-3800A not include patient monitor).
4. Medical Oxygen Sensor
Sturdy precision sensor for quick & accurate oxygen concentration readings.
5. Clear Anesthesia Masks
Comfortable lightweight reusable anesthesia masks available in all sizes.
6. Breathing Circuit Tubes
Reusable breathing circuit tubes, available in adult, pediatric & neonatal lengths.

The HA-3800A also includes a broad selection of other accessories for you to choose from:
l Manual breathing bag l Color gas connecting tubes
l Oxygen regulator l Power cords
l Disposable anesthesia masks l Disposable circuit tubes
l Adult bellows l Pediatric bellows
l Patient monitor support arm l Swivel wheel with brakes
l Swivel wheel without brakes l Battery

Features:*Premium performance for less

Details Images

Specification

General specification
Dimensions(HWD)	132cmx100cmx75cm
Weight	114 kg (with 2 PA-I vaporizers attached)
Power	220-240 V, 50-60 Hz (well grounded)
Backup power	At least 30 minutes, nominally between 2 to 4 hours
Display	8.4 inch TFT display
Ventilator
Drive Method	Pneumatically driven & electronically controlled, closed, semi-closed andsemi-open
Tidal volume	Adjustable range: 20-1500 ml, Display range: 0-2000 ml
Respiratory rate	1-100 bpm
Operating modes	Manual, Standby, Intermittent Positive Pressure V entilation (IPPV)Synchronized Intermittent Positive Pressure Ventilation (SIPPV),Volume Controlled V entilation (VCV), Intermittent Mandatory Ventilation (IMV), Synchronized Intermittent Mandatory V entilation(SIMV)
Pressure control range	5-70hPa
Trigger Sensitivity	Flow: 1-30 L/min, Pressure: -10-1O cmH2O
SIMV rate	1-20 bpm
Inspiration/Expiration ratio(I:E)	8:1-1:10 (capable of inverse ratio ventilation)
Inspiratory time1-20 bpm	0-2s
Inspiratory plateau	0-1s
Electronic PEEP	O-20 cmH2O
Sigh function	1 sigh breath in every 80-120 breaths
Gas System
Flowmeter	O2: 0.1-10 L/min, N2O: 0.1-10 L/min, AIR: 0.1-10 U/minO-10 L/min
Fresh-gas flow	0-10L/min
Gas supply	O2, N2O, AIR: 0.32-0.6 Mpa
O2 flush	25-75 Lmin
Anesthesia Gas Scavenging System (AGSS)	Optional
Other specification
Monitoring	Monitorable parameters: Minute Volume (MV), Tidal V olume (VT), breathing frequency, peak pressure, PEEP, spontaneous inspiration rate,airway resistance, oxygen concentration, lung compliance & powersupply
Alarm	Audible and/or visual alarms for tidal volume, airway pressure, oxygenconcentration, asphyxia, power failure, oxygen failure & more, alsofeatures a alarm query function
Vaporizers	1-2 PA series (Selectatec® compatible) vaporizer mounts
Vaporizers concentration	0-5%
Absorber volume	1.5L
