Medical Equipment Anestesia Machine Portable The Anesthesia Machine With Two Vaporizers Veterinary

Product Description

Medical Equipment ICU medical anesthesia machine with two vaporizers for surgical operations

Common Features:

1.Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

2.Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able-display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume, displayed waveforms can be cycled instantly with a touch of a button

3.Standard integrated metallic modularrespiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect

4.Power Failure Support Functions: Automatically converts to backup power mode during AC power outages

5.Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time

6.High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%

7.Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor

8.Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function

9.Vaporizer: Imported tank components assembled locally; Also possesses self-compensating functionality

10.Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia

11.Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C

12.Multi-parameter Patient Monitor: Optional

Specification

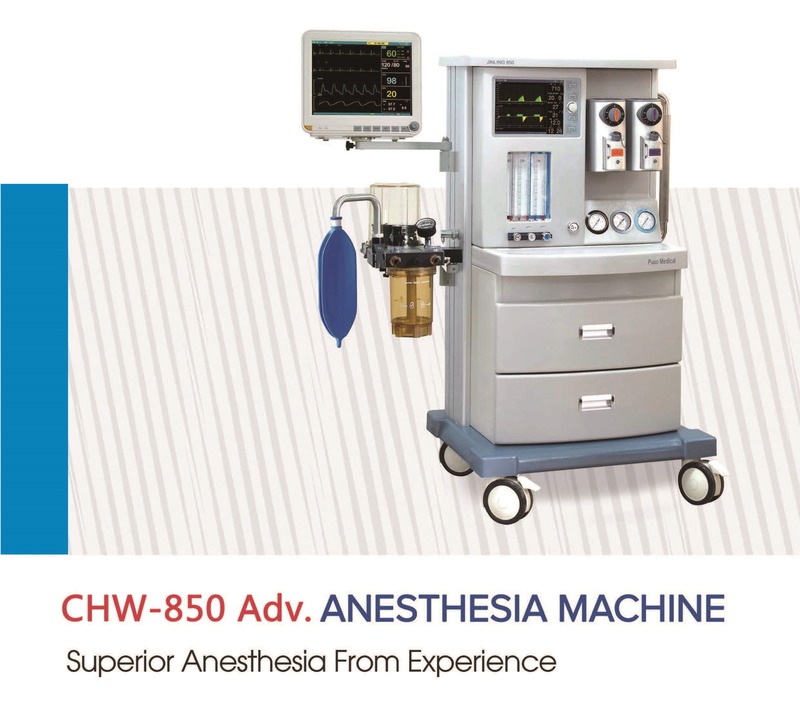

Model	CHW-850 (Advanced Model)
Display	10.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min, N2O: 0.1-10L/min, Air: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power Supply	At least 4 hours,
Tidal Volume	Adjustable range: 10-1500ml, Display range: 0-2000ml
Respiratory Rate	1-100bpm
Inspiratory/Expiratory (I:E) Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger Range	-10-10cmH2O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
Inhaled Oxygen Concentration Monitor	21-100%
SIMV Rate	1-20bpm
Inspiratory Plateau	0-1 second
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Double PA-I type slots

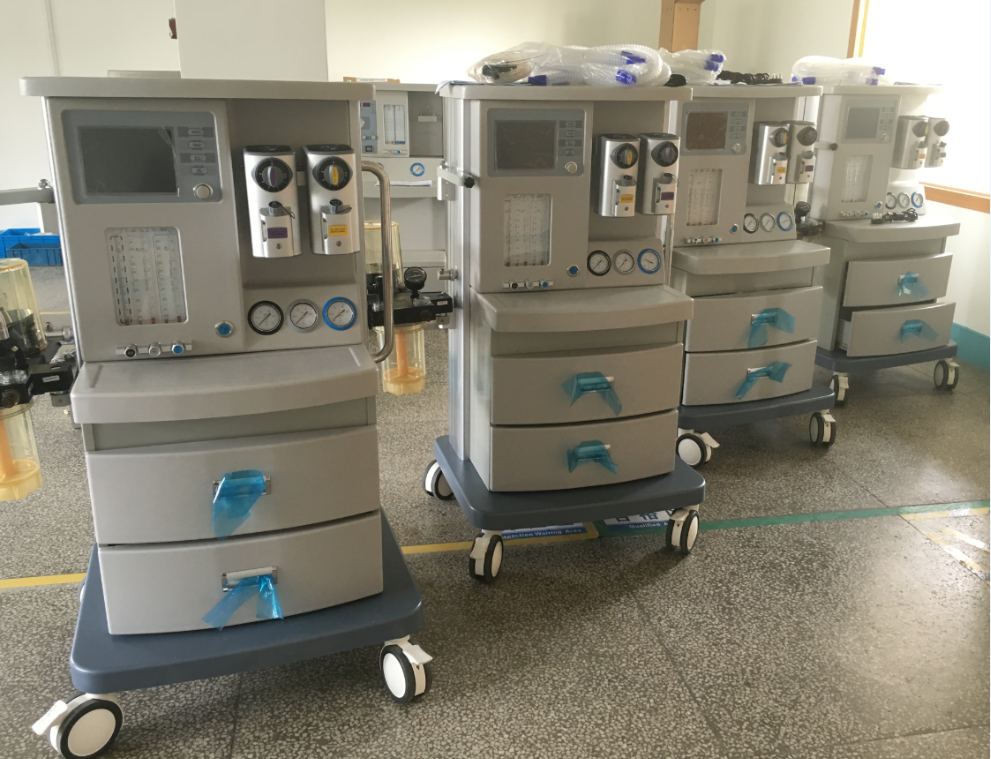

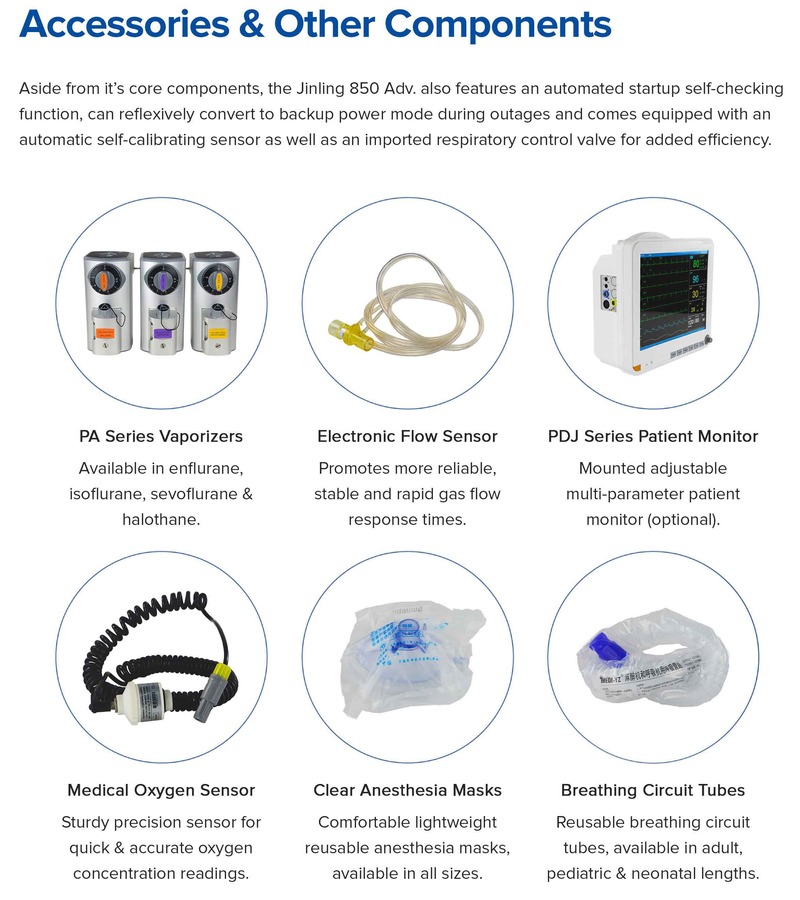

Details Images

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
