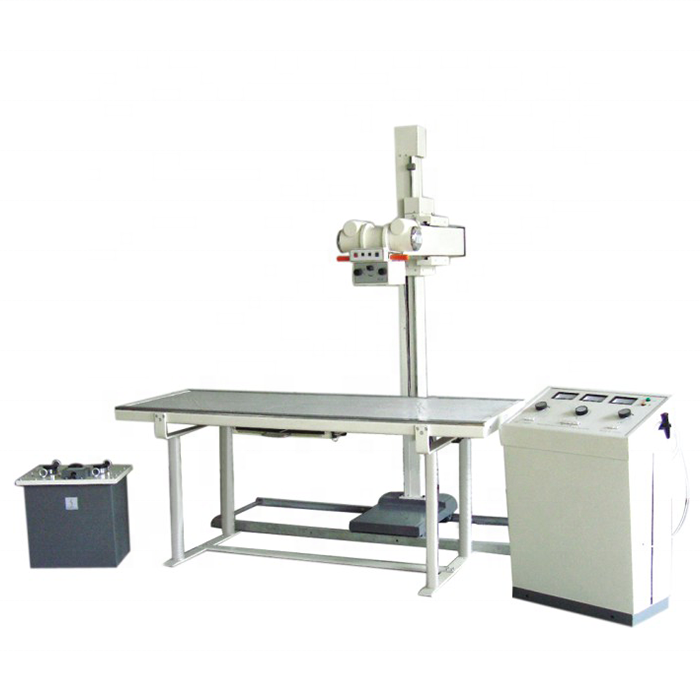

Supply Longer Life Medical Devices
4 Years
| Ask Lasest Price | |
| Brand Name : | Logermay |
| Model Number : | LGM-1026 |
| Supply Ability : | 1000 Set/Sets per Month |
| Price : | $3,200.00 - $4,000.00/Sets |
Demand of power supply | Veitage | Singlephase 220V/380V±10% | |
Frequency | 50Hz±1Hz | ||
Capacity | 10kV.ρ | ||
Internal resistance | 220V:0.6 Ω 380V:2 Ω | ||
Photograph | Voltage | 50-90kV | |
Current | (small focus):16mA, | ||
(big focus):32mA,63mA,100mA | |||
Time | 0.04 - 6.3s, 22 grades together | ||
high-voltage transformer unit | Capacity | 7kVA | |
Max. DC output voltage | 90kV | ||
Max.DC output current | 100mA | ||
X-Ray tube | Model | XD4-2.9/100 | |
Focus | (small focus):1.8mm (big focus):4.3mm | ||
Photographic bed | Bed face (L×W×H) | 1900mm×695mm×700mm | |
Ray-filter | (Grid density): N28 | ||
(convergence distance): 100cm | |||
(Grid ratio): r8 | |||
Pillar of X-Ray source unit | moving in length | > 1350mm | |
movingin breadth | >360mm | ||
moving up and down | 720-1800mm | ||
Maxsize cassette for photograph | 365mm432mm | ||
Gross weight | 700Kg | ||
Net weight | 550Kg | ||
External dimensions | 2180*800*130mm | ||
Focus of X-Ray tube | Photograph current(mA) | Max Photograph Voltage(KVp) | Max allowable exposure time(S) |
Small focus | 15 | 90 | 6.3 |
Big focus | 30 | 90 | 6.3 |
60 | 90 | 6.3 | |
100 | 85 | 2.5 |
|
