LED x-ray film viewerled medical film viewer

Ask Lasest Price
Brand Name :	Logermay
Model Number :	LGM-1025
Supply Ability :	1000 Set/Sets per Month
Price :	$285.00 - $360.00/Sets

Add to Cart

Product Details
Company Profile

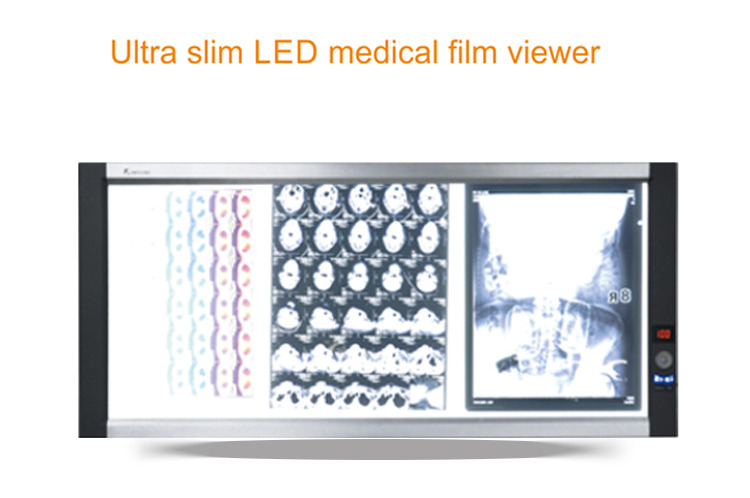

LED x-ray film viewerled medical film viewer

Product Description

X-ray film viewerled medical film viewer

LED operation shadowless lamp solutionMplent research and develops based on the entire reflection system and distributed LED light source technology, brings unique newilluminating concept for the examination and operation in medical industry, meanwhile it combines the dual advantages of traditional halogen lamp and LED illuminating system, so that overcomes the defects from traditional halogen shadowless lamp such as poor illuminating quality, ultra high thermal radiation, high loss of power, high maintenance cost, low lifespan of lamp, etc.

Characteristics for the entire reflection type LEDilluminating engine

* It could directly replace the traditional halogen shadowless lamp without any differences and unnecessary to change the
originalfittings such as reflectors, which greatly decrease the time for R&D of new product, meanwhile it also brings low cost solution for upgrading the traditional halogen shadowless lamp to be LED light source.
* Aply one hop reflection principle to decrease the light loss and improve the utilizable ratio and more energy saving.
* Apply 12pcs COB integrated optical source for the center of iluminating engine, CCT is 4000K, imported LED chip, High photosyntheticefficiency, well stabilit.
* Use standard reflector, illumination is 4000~16000Lx( adjustable).
* Adopts the PWM technology to adjust the brightness without stage, 0-100 stage continuously brightness adjustment by the knob,LCD color screen displaying the brightness and color temperature, it is with the memory function for brightness and color temperature.
* Adopt the pure copper+aluminum alloy heat radiation structure for the illumi bettereffect for heat dissipation, low, long
lifespan.
* Be suitable for all factory's 500/700 shadowless lamp

Characteristics for the distributed LED light source
Equipment composition

*Adopts unique light-gathering technology, greatly increase the light efficiency, the entire lamp power is only 70W at the
maximum illumination, it is more energy-saving.
*Light source adopt the imported OSRAM LED, the color temperature is adjustable, high lightefficiency, well stability.
*Adopts the PWM technology to adjust the brightness without stage,0-100 stage continuously brightness adjustment by the knob,LCD color screen displaying the brightness and color temperature, it is with the memory function for brightness and color temperature.
* Iumination is 40000~16000Lx(adjustable)
* ABS+ aluminum PCB applies on Light source,good radiation for heat and with lighter weight
* Be suitable for all factory's 500/700 shadowless lamp

Specification

Type	Single(NTZG-1C)	Double(NTZG-2C)	Triple(NTZG-3C)
External Size(LxWxH mm)	478×506x25	838×506×25	1198x506×25
Visual Area Size(LxW mm)	360x425	720x425	1080x425
Max. Power(W)	30W	60W	90W
LED Specification & Lifespan	Super Bright SMD LED, 144pcs/bank; CCT ≥8000K; Lifespan ≥100000h
Power, Voltage, Frequency	Built-in Global Adaptive Power; AC90V-240V 50/60Hz
View Panel Luminance	PWM Dimming System,can be modulated range from 14% to 100% continuously, Luminance:0-4500cd/ m2
Film Automatic Activation	The panel will light up automatically when film inserted and off when moved away
Brightness uniformity	≥90%
Film clip device	SS roller oblique compresion type
Installation way	Wall mounting, Bracket mounting
Applicatio Scope	General Film、Digital Film、Breast Mammography Film
Application Condition	Application Condition
