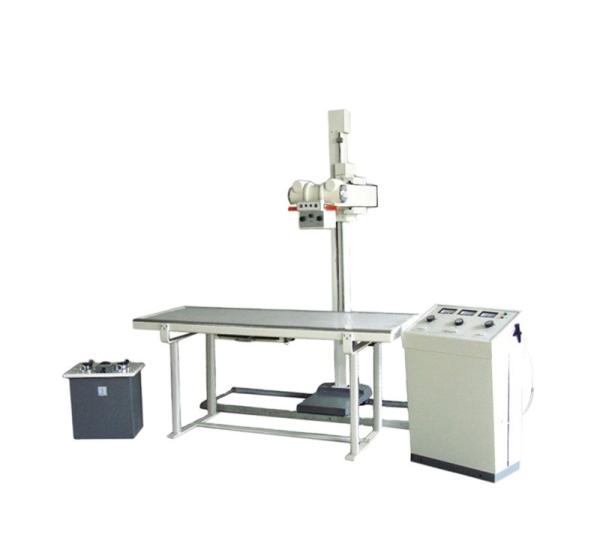

Supply Longer Life Medical Devices
4 Years
| Ask Lasest Price | |
| Brand Name : | Logermay |
| Model Number : | LGM-1017 |
| Supply Ability : | 1000 Set/Sets per Month |
| Price : | $6,300.00 - $6,500.00/Sets |
Item | Content | Index | |
Demand of power supply | Voltage frequency | 380V/220V±10 50Hz±0.5Hz | |
Internal resistance | 380V:0.75Ω, 220V:0.25Ω | ||
Power supply | Adjustable range | 380V±10at380V; 220V±10at220V being adjustable continuously | |
Radiographic | Voltage | 50-120kV | |
Current | Small focus 50mA,100mA Big focus 100,200,300mA | ||
Time | 0.04-6.3s | ||
High-voltage generator | Capacity | 20kVA(instantaneous) | |
Max DC output voltage | 120kV | ||
Max DC output current | 300mA | ||
X-ray tube | Model | XD51-20.40/125 | |
Focus | Small focus:1×1mm, Big focus:2×2mm | ||
Radiographic table | Table face(L×W×H) | 2000mm×710mm×700mm | |
Moving range of table face | 620mm×200mm | ||
Ray-filter | Travel in length:500mm | ||
Grid density N28 | |||
Convergence distance of 1000mm | |||
Grid ratio R8 | |||
Pillar of X-ray tube unit | Moving in length along radiographic table | 1100mm | |
Distance to ground as moving up and down (along upright post) | 630mm~1750mm | ||
Rotary around the center of cross arm | ±180º | ||
Rotary around the shaft line of X-ray annular tubes | -10º~60º~+120º | ||
Max size of cassette for radiography | 356mm×432mm(14"×17") | ||
|
