urgical Orthopedic Bone Drill Canulate Drill

Ask Lasest Price
Brand Name :	Longermay
Model Number :	LGM-2211
Supply Ability :	1000 Set/Sets per Month
Price :	$400.00 - $600.00/Sets

Add to Cart

Product Details
Company Profile

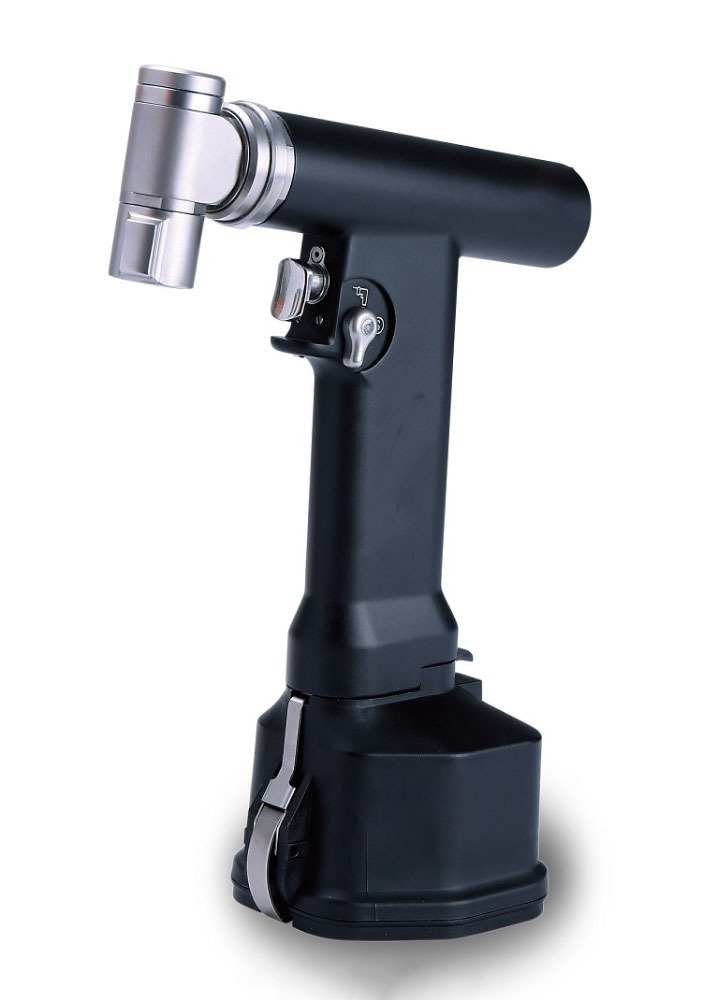

urgical Orthopedic Bone Drill Canulate Drill

Product Description

High quality Healmeds orthopedic portable Medical bone Drill Bits surgical drill with battery

urgical Orthopedic Bone Drill Canulate Drill

Our electric bone surgery power system, mainly used in orthopedic trauma surgery, artificial joint replacement surgery and hand and foot surgery, neurosurgery and other fields. The product has obtained the second-class medical device registration certificate issued by the State Food and Drug Administration and the CE ,ISO13485 certification.

Specification

Item	Value	Item	Value
Speed	0-1200rpm	Radial circle run-out	≤0.1mm
Torque	2N.m	Axial movement	≤0.5mm
Noise	≤75dB	Battery capacity	1600mAh
Operation(V) voltage	14.4V	Biggest drill bit diameter	8mm
Sterilization temperature	135℃	Diameter of Cannulation	4.5mm

Configuration

Accessory list	Quantity	Note
Handpiece	1 PC	Standard
Battery	2 PCS	Standard
Charger	1 PC	Standard
Drill chuck	1 PC	Standard
Sterilizing channel	1 PC	Standard
Aluminum alloy case	1 PC	Optional

Notes
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.

Details Images

Product packaging
